Beyond Art: The Engineering of Scale
A large scale lantern display — pieces exceeding 10 meters or festivals covering 10+ acres — requires serious engineering. Structural integrity, electrical distribution, wind resistance, and visitor safety become exponentially more complex at scale. This article explores the engineering behind these massive illuminated spectacles.
Structural Engineering
Large lantern structures require professional engineering. Our structural engineers calculate: dead load (weight of the piece), live load (wind, snow, visitor interaction), and dynamic load (movement from animation or wind gusts). Framework design uses finite element analysis to ensure every joint and member can withstand expected forces with a 3:1 safety factor.
Pieces over 8 meters typically use internal truss systems (like bridge construction) rather than simple rod frameworks. Base plates are engineered with multiple anchor points, and large pieces may require concrete footings or weighted ballast systems.
Electrical Engineering at Scale

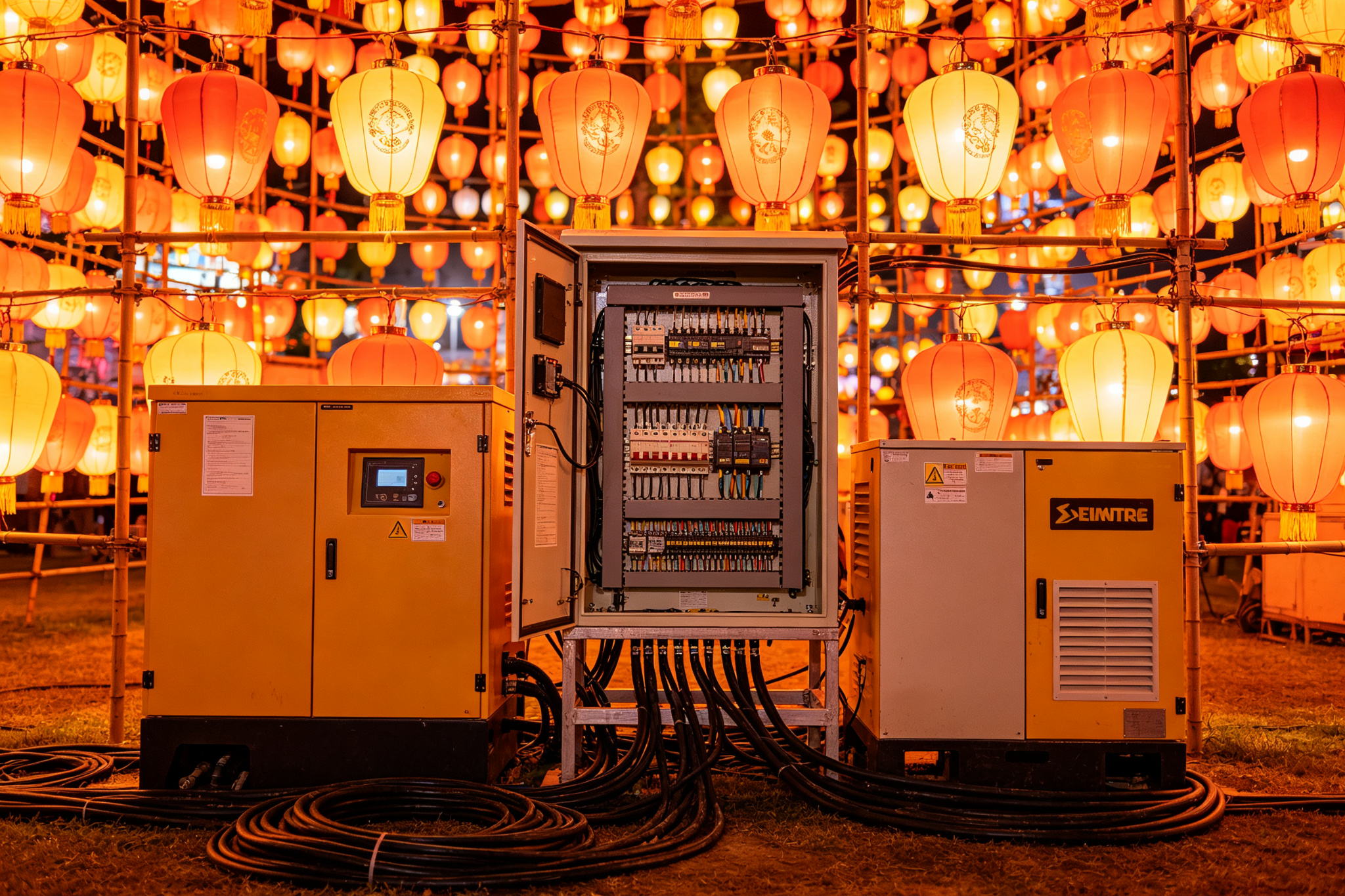

A large festival can require 500+ amps of power distributed across hundreds of pieces. Our electrical engineers design: main distribution panels with load balancing, redundant circuits (no single point of failure), underground cable routing (protected from weather and traffic), and DMX control networks (addressing thousands of individual LED nodes).
Power is distributed in zones, each with its own GFCI-protected panel. Emergency shutoffs are located at multiple points. All systems are designed to meet local electrical codes, with documentation for inspector approval.
Wind & Weather Engineering
Large lantern surfaces act like sails — a 10-meter dragon can generate thousands of pounds of wind force. We mitigate this through: aerodynamic shaping (reducing wind catch), permeable fabric options for high-wind areas, reinforced anchor systems, and monitored wind sensors that trigger safety protocols at threshold levels.
For extreme weather locations, we design pieces with modular sections that can be quickly lowered or covered. Our installation team trains venue staff on weather response procedures.
Lighting Control at Scale
Controlling thousands of LED nodes across a large festival requires sophisticated systems. We use: Art-Net/sACN network protocols for large-scale DMX distribution, central control servers with show programming, wireless control for hard-to-reach pieces, and backup controllers for critical displays. Shows can be synchronized across the entire festival or controlled zone by zone.
Installation Engineering
Installing large pieces requires: cranes or lifts for pieces over 5 meters, specialized rigging equipment, multi-person teams (5-10 per large piece), and detailed assembly sequences. We pre-assemble large pieces at the factory for test fitting, then disassemble for shipping with numbered components and assembly manuals. On-site installation follows engineered procedures with safety harnesses and fall protection for work at height.
Case Study: 30-Meter Dragon Display
We recently engineered a 30-meter-long dragon lantern for a Middle Eastern festival. The piece required: internal steel truss (8mm main members), 12 anchor points, 300+ LED nodes, 200A dedicated power circuit, and crane installation over 3 days. The dragon withstood 40 mph winds during the festival run with zero structural issues.
At Zigong Sun Culture, large scale is our specialty. Our engineering team has designed and installed pieces up to 50 meters long and festivals covering 30+ acres. Contact us to discuss your large scale lantern display project.
